Configuration Words Can Indicate Layout Without Defining Electrical Roles

Time:2026-09-04 11:17:05 Hits: 5

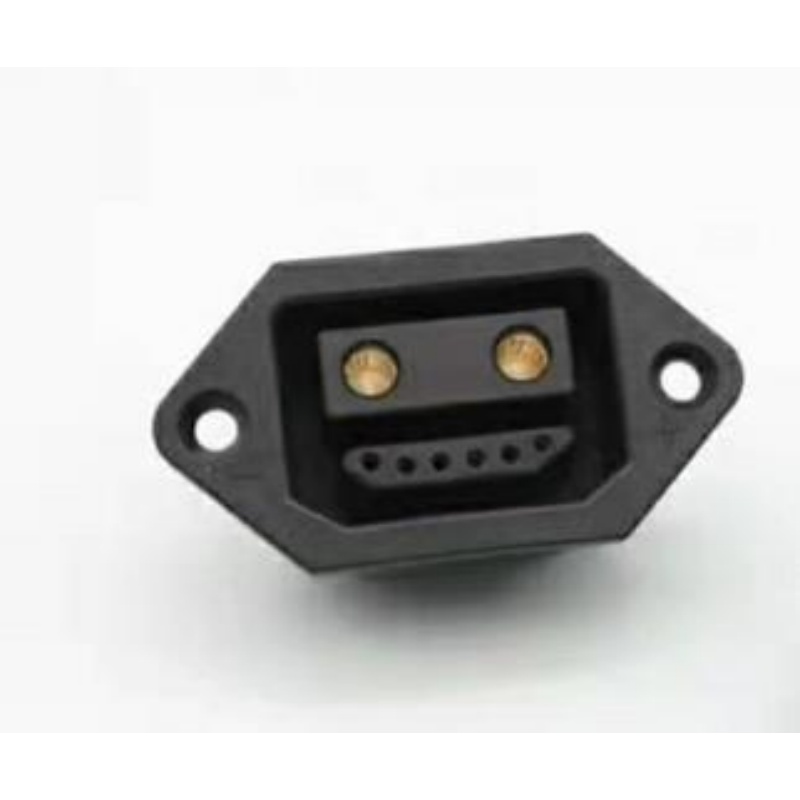

Configuration wording can be valuable because it gives the reader an early way to recognize that the connector has a defined structure rather than being described only by application category. For example, “DM80 2+6 connector” is more specific than saying only “battery connector,” because it combines a model-style term with a configuration-style term. Still, the value is identification, not functional mapping. It does not state whether two positions are larger, whether six positions are smaller, whether contacts are power, signal, interlock, sensing, or unused, or whether all positions are populated in every version. The correct reading is therefore layered: first identify the configuration phrase, then look for the controlled document that assigns contact numbers and functions.
